Below are the beam load information for the use of the KwikFit fittings.
Beam Load Table (lb)
FITTING | SIZE 32 | SIZE 40 |
Size of Pipe | 1.25″ N.B. | 1.50″ N.B. |
Grade of Material | SCH. 40 | SCH. 40 |
SPAN | Load (lb) | Load (lb) |
1′ | 5516 | 7669 |
2′ | 2758 | 3834 |
3′ | 1838 | 2556 |
3′ 6″ | 1576 | 2191 |
4′ | 1379 | 1917 |
4′ 6″ | 1226 | 1704 |
5′ | 1103 | 1534 |
5′ 6″ | 1003 | 1394 |
6′ | 919 | 1278 |
6′ 6″ | 849 | 1180 |
7′ | 788 | 1096 |
7′ 6″ | 735 | 1023 |
8′ | 690 | 959 |
9′ | 613 | 852 |
10′ | 511 | 767 |
Table reflects a safety factor of 1.67:1
Upright Load Table

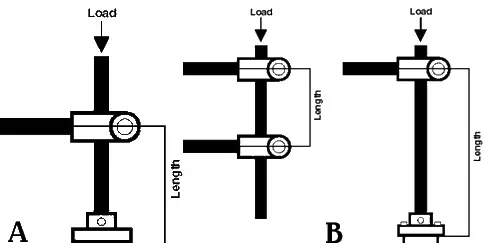

This table gives an indication only of the safe load, in lbs., that may be carried between the above restraints by single Schedule 40 pipe, 30000 PSI, when used as uprights. Loads listed under ‘A’ columns refer to those loads that are obtainable according to schematic ‘B’. Schematic ‘B’ details a racking system that is mechanically affixed to the surface on which it stands, whereas Schematic ‘A’ details a free-standing racking system. Recommended screw torque: 24 lbs./ft.
FITTING | SIZE 32 | SIZE 40 | ||
Size of Pipe | 1.25″ N.B. | 1.50″ N.B. | ||
Grade of Material | SCH. 40 | SCH. 40 | ||
LENGTH | Load (lb) | Load (lb) | ||
A | B | A | B | |
1′ | 4445 | 4635 | 5238 | 5403 |
1′ 3″ | 4213 | 4445 | 4955 | 5235 |
1′ 6″ | 3875 | 4213 | 4650 | 4955 |
1′ 9″ | 3630 | 3948 | 4395 | 4730 |
2′ | 3335 | 3715 | 4138 | 4500 |
2′ 3″ | 3048 | 3470 | 3883 | 4268 |
2′ 6″ | 2753 | 3273 | 3570 | 4003 |
2′ 9″ | 2505 | 2993 | 3243 | 3730 |
3′ | 2170 | 2703 | 2985 | 3523 |
3′ 3″ | 1993 | 2563 | 2698 | 3283 |
3′ 6″ | 1810 | 2283 | 2418 | 3083 |
3′ 9″ | 1643 | 2085 | 2250 | 2858 |
4′ | 1488 | 1938 | 2065 | 2603 |
4′ 3″ | 1313 | 1783 | 1880 | 2393 |
4′ 6″ | 1215 | 1643 | 1698 | 2225 |
4′ 9″ | N/A | 1488 | 1560 | 2098 |
5′ | N/A | 1363 | 1450 | 1920 |
5′ 3″ | N/A | 1270 | N/A | 1785 |
5′ 6″ | N/A | 1698 | ||
5′ 9″ | N/A | 1520 | ||
6′ | N/A | 1450 | ||
6′ 3″ | ||||
6′ 6″ | ||||
6′ 9″ | ||||
7′ | ||||
7′ 3″ | ||||
7′ 6″ |
Table reflects a safety factor or 2:1
