topal™ Non-Marring Multiposition Automatic Plate Clamp - NX/NXR

topal™ NX/NXR Non-Marring Multiposition Automatic Plate Clamp

Self-locking plate clamps for very hard or sensitive loads.

The NX is designed for lifting and revolving without marring of smooth or polished pieces such as stainless steel plates, aluminium, pre-lacquered plates, wood, laminated sheets, marble, concrete, glass, plastic, or any fragile surface.

Fitted with jaws coated with polyurethane enabling to lift and revolve loads without marring their surface. These products are equipped with a safety spring mechanism and an automatic grasping which respectively permits a permanent contact of the cam onto the piece to be lifted, even when it is being put down and ensures the clamp’s closing when the plate is correctly positioned i.e. at the back of the clamp’s throat. The chain enables the turning and makes the clamp’s positioning easier.

FEATURES

• A clamp for all situations, with no risk of damaging load
• For any rigid load up to 3,300 lbs. (1, 500 kg) and 5 1/2 in. (140 mm) in thickness
• Permanently attached chain sling with a large oval suspension ring
• Non-marring polyurethane coated jaws
• Automatic clamping (manual clamping recommended for fragile materials)

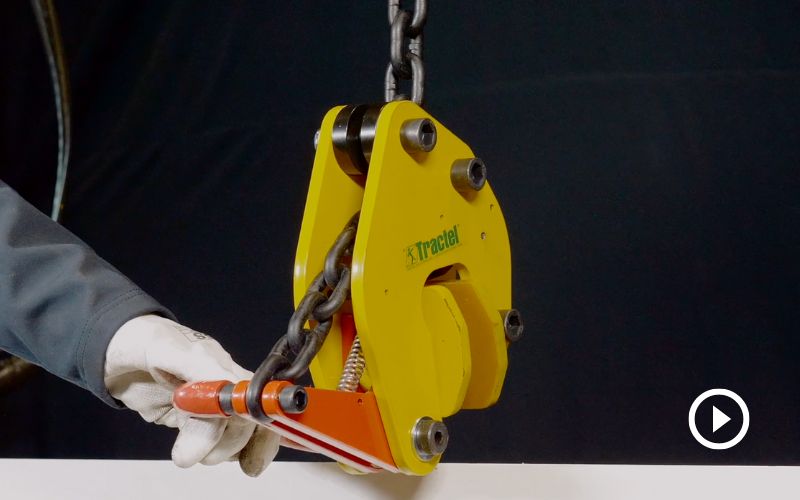

VIDEO - How to use an NX Automatic Lifting Clamp?
