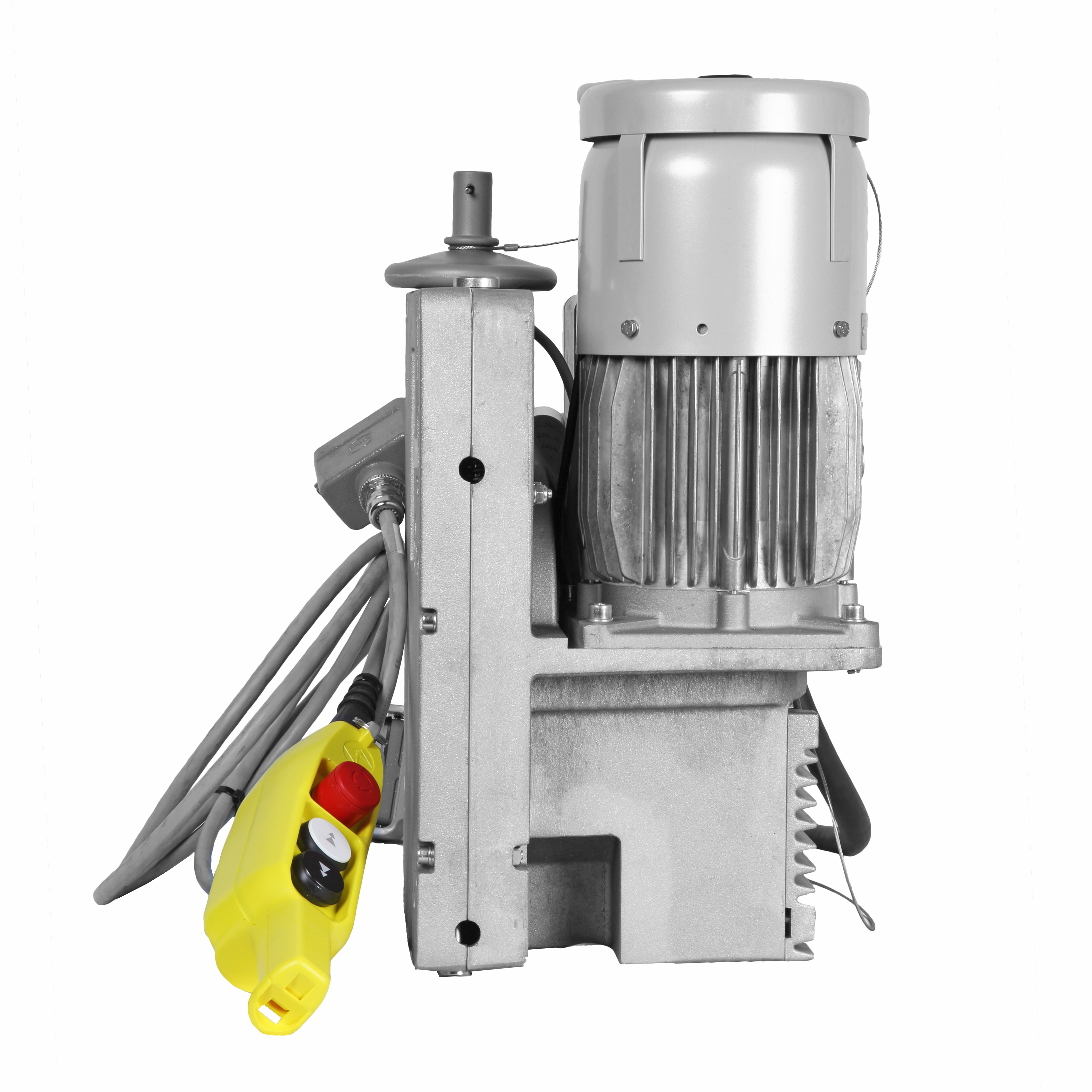

Wherever you need to transport people, the highest safety standards are regulated by law. Certified by an independent notified body in accordance with EN1808, the tirak™ meets all these requirements and forms the heart of many access systems.
When you choose tirak™ hoists you are guaranteed:
A complete range of tirak™ models offer WLLs from less than 300kg up to 2000kg for Manriding applications.
For more detailed information about the tirak™ traction hoist, contact your local Tractel® distributor.
To access this file, please complete your details in the form provided.
You will receive an email confirmation with a link to download the file.
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X300P hard wired pendant control | 8 | 9 | 400 | 50 | 2 | 28 | hard-wired pendant control |
290899 | ||
X300P pluggable pendant control | 8 | 9 | 400 | 50 | 2 | 28 | pluggable pendant control |
290909 | ||
X301P hard wired pendant control | 8 | 9 | 230 | 50 | 5 | 29 | hard wired pendant control |
290919 | ||
X301P pluggable pendant control | 8 | 9 | 230 | 50 | 5 | 29 | pluggable pendant control |
290929 | ||
X302P hard wired pendant control | 8 | 18 | 400 | 50 | 3,0 | 28 | hard wired pendant control |
290939 | ||
X302P pluggable pendant control | 8 | 18 | 400 | 50 | 3,0 | 28 | pluggable pendant control |
290949 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X400P hard wired pendant control | 8 | 9 | 400 | 50 | 2,5 | 29 | hard wired pendant control |
290959 | ||
X400P pluggable pendant control | 8 | 9 | 400 | 50 | 2,5 | 29 | pluggable pendant control |
290969 | ||
X401P hard wired pendant control | 8 | 9 | 230 | 50 | 6,1 | 38 | hard wired pendant control |
290979 | ||
X401P pluggable pendant control | 8 | 9 | 230 | 50 | 6,1 | 38 | pluggable pendant control |
290989 | ||
X402P hard wired pendant control | 8 | 18 | 400 | 50 | 3,8 | 32 | hard wired pendant control |
290999 | ||
X402P pluggable pendant control | 8 | 18 | 400 | 50 | 3,8 | 32 | pluggable pendant control |
291009 | ||
X403P hard wired pendant control | 8 | 9/18 | 400 | 50 | 2,2/4,5 | 37 | hard wired pendant control |
291019 | ||
X403P pluggable pendant control | 8 | 9/18 | 400 | 50 | 2,2/4,5 | 37 | pluggable pendant control |
291029 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
L500P hard wired pendant control | 8 | 9 | 400 | 50 | 2,5 | 29 | hard wired pendant control |
291039 | ||
L500P pluggable pendant control | 8 | 9 | 400 | 50 | 2,5 | 29 | pluggable pendant control |
291049 | ||
X500P hard wired pendant control | 8 | 9 | 400 | 50 | 3,1 | 41 | hard wired pendant control |
291059 | ||
X500P pluggable pendant control | 8 | 9 | 400 | 50 | 3,1 | 41 | pluggable pendant control |
291069 | ||
X501P hard wired pendant control | 8 | 9 | 230 | 50 | 7,6 | 49 | hard wired pendant control |
291079 | ||
X501P pluggable pendant control | 8 | 9 | 230 | 50 | 7,6 | 49 | pluggable pendant control |
291089 | ||
X502P hard wired pendant control | 8 | 18 | 400 | 50 | 5,5 | 44 | hard wired pendant control |
291099 | ||
X502P pluggable pendant control | 8 | 18 | 400 | 50 | 5,5 | 44 | pluggable pendant control |
291109 | ||
X503P hard wired pendant control | 8 | 9/18 | 400 | 50 | 3,7/6,6 | 51 | hard wired pendant control |
291119 | ||
X503P pluggable pendant control | 8 | 9/18 | 400 | 50 | 3,7/6,6 | 51 | pluggable pendant control |
291129 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X600P hard wired pendant control | 8 | 9 | 400 | 50 | 4,3 | 53 | hard wired pendant control |
291139 | ||
X600P pluggable pendant control | 8 | 9 | 400 | 50 | 4,3 | 53 | pluggable pendant control |
291149 | ||
X601P hard wired pendant control | 8 | 9 | 230 | 50 | 10 | 58 | hard wired pendant control |
291159 | ||
X601P pluggable pendant control | 8 | 9 | 230 | 50 | 10 | 58 | pluggable pendant control |
291169 | ||
X602P hard wired pendant control | 8 | 18 | 400 | 50 | 4,8 | 57 | hard wired pendant control |
291179 | ||
X602P pluggable pendant control | 8 | 18 | 400 | 50 | 4,8 | 57 | pluggable pendant control |
291189 | ||
X603P hard wired pendant control | 8 | 9/18 | 400 | 50 | 4,5/8,7 | 66 | hard wired pendant control |
291199 | ||
X603P pluggable pendant control | 8 | 9/18 | 400 | 50 | 4,5/8,7 | 66 | pluggable pendant control |
291209 | ||
X620P hard wired pendant control | 9 | 9 | 400 | 50 | 4,3 | 53 | hard wired pendant control |
291219 | ||
X620P pluggable pendant control | 9 | 9 | 400 | 50 | 4,3 | 53 | pluggable pendant control |
291229 | ||
X621P hard wired pendant control | 9 | 9 | 230 | 50 | 10 | 58 | hard wired pendant control |
291239 | ||
X621P pluggable pendant control | 9 | 9 | 230 | 50 | 10 | 58 | pluggable pendant control |
291249 | ||
X622P hard wired pendant control | 9 | 18 | 400 | 50 | 4,8 | 57 | hard wired pendant control |
291259 | ||
X622P pluggable pendant control | 9 | 18 | 400 | 50 | 4,8 | 57 | pluggable pendant control |
291269 | ||
X623P hard wired pendant control | 9 | 9/18 | 400 | 50 | 4,5/8,7 | 66 | hard wired pendant control |
291279 | ||
X623P pluggable pendant control | 9 | 9/18 | 400 | 50 | 4,5/8,7 | 66 | pluggable pendant control |
291289 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X820P hard wired pendant control | 9 | 9 | 400 | 50 | 4,5 | 47 | hard wired pendant control |
291299 | ||
X820P pluggable pendant control | 9 | 9 | 400 | 50 | 4,5 | 47 | pluggable pendant control |
291309 | ||
X823P hard wired pendant control | 9 | 9/18 | 400 | 50 | 5,5/9,5 | 53 | hard wired pendant control |
291319 | ||
X823P pluggable pendant control | 9 | 9/18 | 400 | 50 | 5,5/9,5 | 53 | pluggable pendant control |
291329 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X1030P hard wired pendant control | 10 | 9 | 400 | 50 | 5,6 | 47 | hard wired pendant control |
291339 | ||
X1030P pluggable pendant control | 10 | 9 | 400 | 50 | 5,6 | 47 | pluggable pendant control |
291349 | ||
X1033P hard wired pendant control | 10 | 9/18 | 400 | 50 | 5,4/10 | 58 | hard wired pendant control |
291359 | ||
X1033P pluggable pendant control | 10 | 9/18 | 400 | 50 | 5,4/10 | 58 | pluggable pendant control |
291369 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X1140P hard wired pendant control | 11 | 9 | 400 | 50 | 5,6 | 47 | hard-wired pendant control |
295939 | ||
X1140P pluggable pendant control | 11 | 9 | 400 | 50 | 5,6 | 47 | pluggable pendant control |
295789 |
Model Name | Wire Rope Diameter (mm) | Forward Speed (m/min) | Voltage (V) | Frequency (Hz) | Current (A) | Weight | Description | Product Code | Price | |
---|---|---|---|---|---|---|---|---|---|---|
X2050P hard wired pendant control | 14 | 6 | 400 | 50 | 6 | 100 | hard wired pendant control |
291379 | ||
X2050P pluggable pendant control | 14 | 6 | 400 | 50 | 6 | 100 | pluggable pendant control |
291389 | ||
X2052P hard wired pendant control | 14 | 12 | 400 | 50 | 10,3 | 117 | hard wired pendant control |
291399 | ||
X2052P pluggable pendant control | 14 | 12 | 400 | 50 | 10,3 | 117 | pluggable pendant control |
291409 | ||
X2058P hard wired pendant control | 14 | 18 | 400 | 50 | 17 | 145 | hard wired pendant control |
291419 | ||
X2058P pluggable pendant control | 14 | 18 | 400 | 50 | 17 | 145 | pluggable pendant control |
291429 |
Model Name | Sheave Diameter (mm) | Wire Rope Diameter (mm) | WLL | Weight | Product Code | Price | |
---|---|---|---|---|---|---|---|
EPA1.6-8/9 III | 171/198 | 8-9 | 1.6 t | 2.6 kg | 252739 | ||
EPA2.4-10/12 III | 196/228.5 | 10-11.5 | 2.4 t | 4.9 kg | 252789 | ||
EPA5-14/16 III | 277.5/323.5 | 14-16.3 | 5 t | 11.7 kg | 252839 | ||
EPC1.6-8-9 III | 171/198 | 8-9 | 1.6 t | 3.4 kg | 252699 | ||
EPC2.4-10/12 III | 196/228.5 | 10-11.5 | 2.4 t | 6.3 kg | 252749 | ||
EPC5 - 14/16 III | 277.5/323.5 | 14-16.3 | 5 t | 14.3 kg | 252799 | ||
EPE1.6-8/9 III | 171/198 | 8-9 | 1.6 t | 3.4 kg | 252709 | ||
EPE2.4-10/12 III | 196/228.5 | 10-11.5 | 2.4 t | 6.3 kg | 252759 | ||
EPE5-14/16 III | 277.5/323.5 | 14-16.3 | 5 t | 14.3 kg | 252809 | ||
EPF1.6-8/9 III | 171/198 | 8-9 | 1.6 t | 3.2 kg | 252719 | ||
EPF2.4-10/12 III | 196/228.5 | 10-11.5 | 2.4 t | 5.8 kg | 252769 | ||
EPF5-14/16 III | 277.5/323.5 | 14-16.3 | 5 t | 13.6 kg | 252819 | ||
EPL1.6-8/9 III | 171/198 | 8-9 | 1.6 t | 3.2 kg | 252729 | ||
EPL2.4-10/12 III | 196/228.5 | 10-11.5 | 2.4 t | 5.9 | 252779 | ||
EPL5-14/16 III | 277.5/323.5 | 14-16.3 | 5 t | 13.6 kg | 252829 |
